HWIR1500Q-4 Industrial Air Heater (Self-supply Air Source, Intelligent Digital Temperature Control, Digital Display Working Temperature, Separate Design)

保定市中和機械設備制造有限公司成立于2003，擁有專業的研發團隊，集設計開發、制造、服務于一體,為客戶專業設計生產各種熱風、紅外輻射加熱設備生產商。應用范圍及行業： 1、干燥爐內的升溫、加熱、干燥、燒制業。 2、食品、制藥、電子、印刷、噴涂、清洗等行業的加熱。 3、干燥除濕行業、管道吹干洗凈后水滴去除、干燥。 4、熱收縮、熱成型、粘膠活化、預熱、表面處理。 5、我公司開發的UV固化箱系統，型號齊全，性能優良。 產品質量是企業的生命，我們始終把質量和信譽放在一位，堅持技術創新，以過硬的專業技術服務行業發展 17325290682

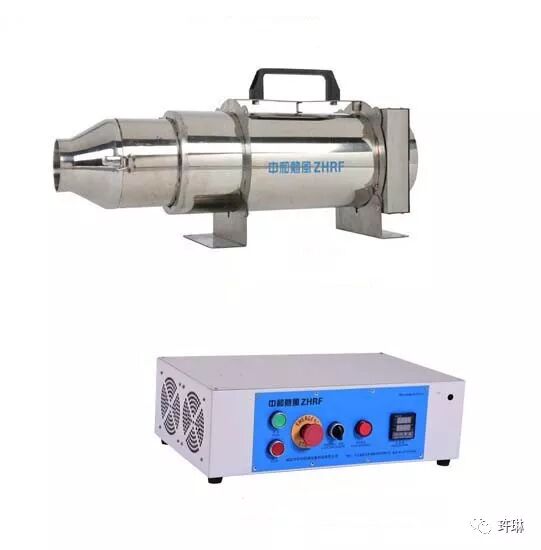

HWIR1500Q-4 Industrial Air Heater (Self-supply Air Source, Intelligent Digital Temperature Control, Digital Display Working Temperature, Separate Design)suitable for heating, drying and dehumidification in food, pharmaceutical, electronic, printing, spraying, cleaning and other industries.It is suitable for working alone or installed on the assembly line. It has high thermal efficiency and can work continuously for 24 hours. It is durable and has accurate temperature control.

Split design

The machine control system and heating system are separate, especially suitable for production line.

Air inlet interface

The machine adopts a tight air inlet interface, and the selection performance of the wind source is strong .

The choice of air volume is large

The machine can choose air source or self distributing air source according to needs, which is convenient and practical.

Environmental protection

When the machine works, there is no exhaust gas, clean and environmental protection.

Heat insulation

Double layer heat preservation.The strong machine casing makes it safe and reliable,can maintain long-term high temperature work.Temperature can be adjusted digitally according to need. The power output is stable, and it can work continuously for 24 hours at high temperature.

High heat exchange

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near .

Temperature regulation of hot air blower

The outlet is equipped with a temperature sensor, so that the machine can adjust the temperature according to needs. The temperature is controlled precisely at + 1 ℃.

Term ordering detection function (preventing fan reversal)

This machine control system is equipped with motor item ordering sequence detection function.If the item ordering error,the item ordering warning indicator lights up.

Remote open control

This machine has a remote control interface, which can control the start and stop of the machine remotely.

Fan delay function

In order to protect the heating core and prolong the service life of the heating core, the machine has a time delay function of downtime and blow drying. After the machine stops working, the hair dryer will blow off for a minute before it can be shut down.

High heat exchange efficiency

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near ,the loss of wind pressure is less.The heating core of the hot air machine is designed to use the lower surface power density, and the heating temperature in the unit area is low, so the electric heat wire has a long service life.

Security

It has overheating overload protection, power cut protection device, emergency stop switch, phase sequence protection, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.This machine can operate continuously for 24 hours all around the year.

Optional air source

Centrifugal blower  medium pressure blower  high pressure blower

Classification	Item	Parameter

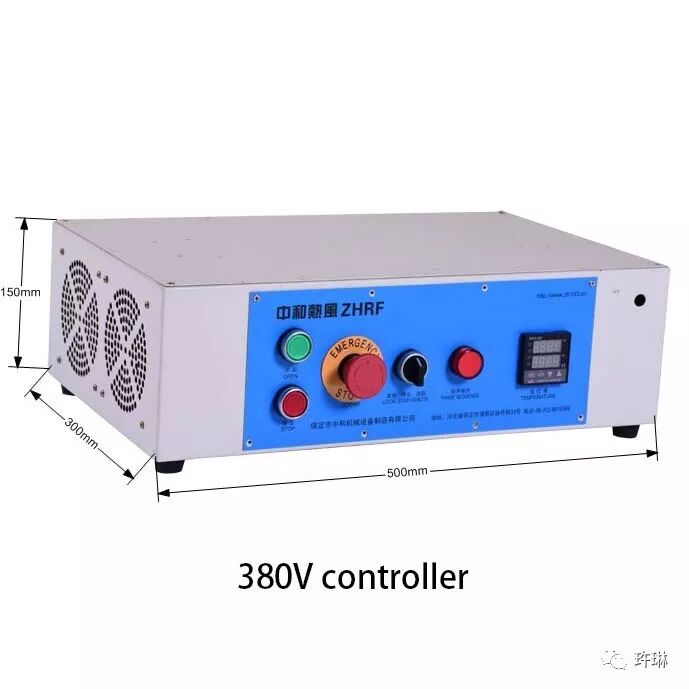

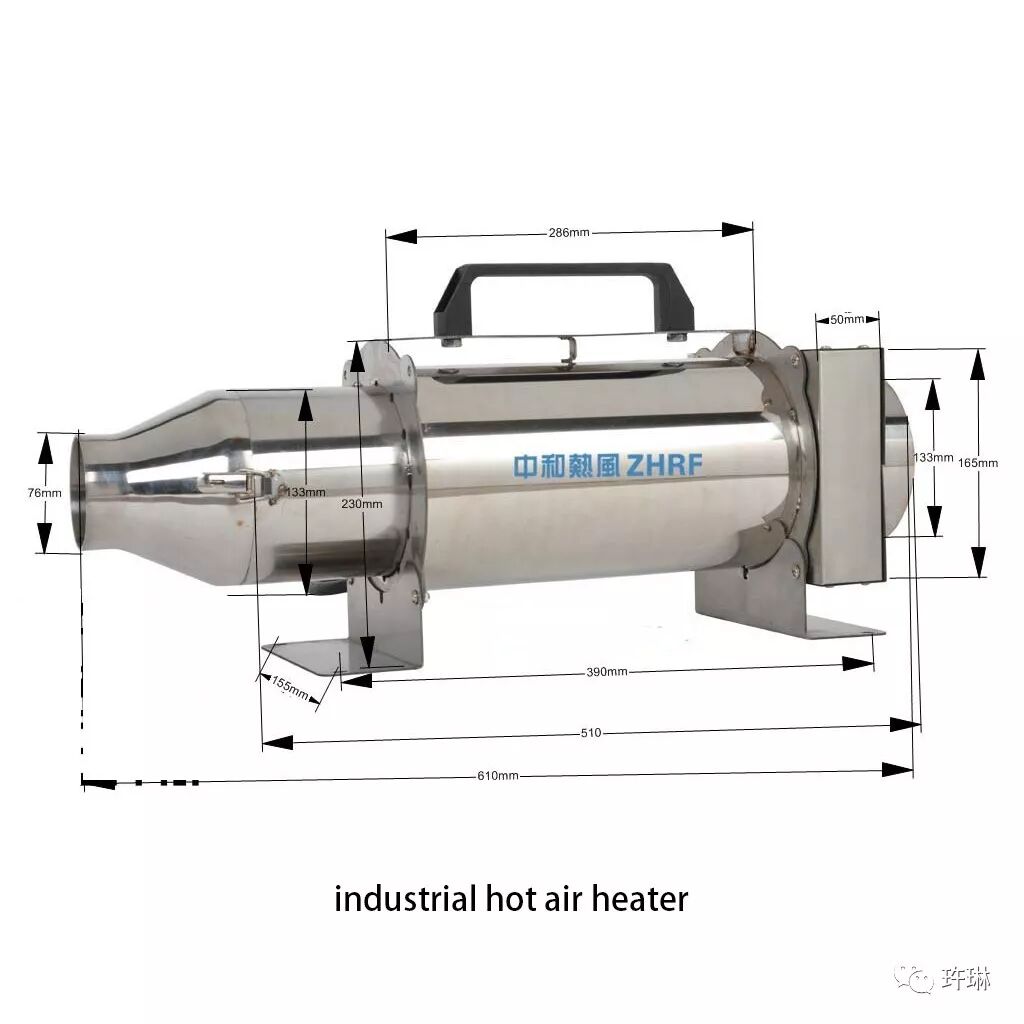

Size	Machine size	See picture
	Vent	Diameter 133mm matching 76mm
	air intake	Diameter 133mm
Insulation layer	Material	Double layer heat preservation
Heater	Name	Electric hot wire
	Heater power	15KW
	Power regulation	Digital intelligent temperature regulation
	Maximum service temperature	≤350℃
	Heating wire life	>100000 hours
Blower(Matching or user self matching)	Maximum power allocation	≤5.5KW
	Minimum matching air volume	>200m3/H
Power Supply	Power demand	380V   Three phase four wire
	Power	15.3KW
Weight	Weight	20KG
