南澳電氣NAJNY全自動緣靴（手套）耐壓試驗裝置耐壓試驗裝置(自動)是緣靴（手套）批量試驗的專用設備。也可以對安全工器具進行測試，例如緣桿、緣螺絲刀、緣墊等。南澳電氣根據緣靴（手套）的試驗要求，并遵從廣大用戶意見而設計生產的。該產品有效的解決了過去不規范試驗，提高了工作效率、保障了工作安全，是

 南澳電氣（武漢）有限公司（簡稱“南澳電氣”)，是國電網武漢高壓研究所改制后成立的高電壓輸變電檢測設備的高新骨干企業，主要從事電力儀器儀表、交直流分壓器、互感器類測試設備、高壓耐壓設備、峰值電壓表、超聲局放定位系統、工頻信號發生器、沖擊電壓電流發生器 、變壓器類試驗設備、繼電保護測試儀、SF6及開關類檢測設備、局部放電超聲檢測系統、避雷器測試設備、環境人工氣候模擬實驗裝置、電能表校驗設備、蓄電池檢測儀等產品的研發。

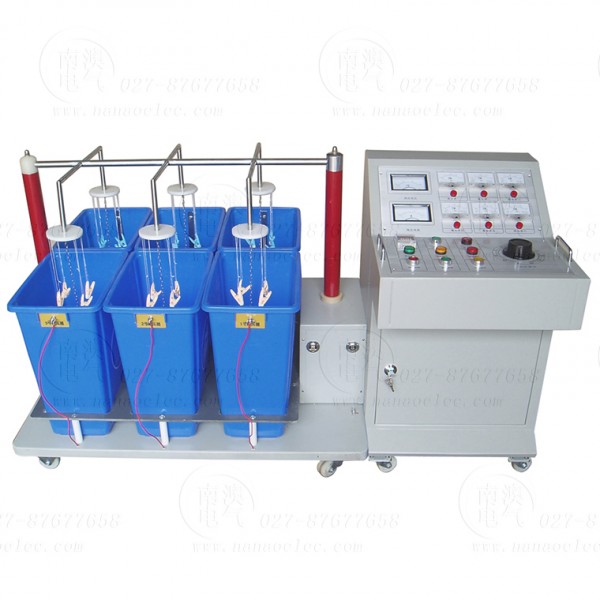

NAJNY Automatic Insulated Boots (gloves) withstand Voltage Testing Device

南澳電氣NAJNY全自動緣靴（手套）耐壓試驗裝置

產品簡介

南澳電氣NAJNY全自動緣靴（手套）耐壓試驗裝置耐壓試驗裝置(自動)是緣靴（手套）批量試驗的專用設備。也可以對安全工器具進行測試，例如緣桿、緣螺絲刀、緣墊等。南澳電氣根據緣靴（手套）的試驗要求，并遵從廣大用戶意見而設計生產的。該產品有效的解決了過去不規范試驗，提高了工作效率、保障了工作安全，是理想的緣靴（手套）專用設備。

NAJNY緣靴（手套）耐壓試驗裝置(自動)采用的微電子處理技術，全部使用過程可提前進行設置，中英文界面，操作簡單明了。全部測試項目設定后自動進行測試，無須人工干預。

南澳電氣NAJNY全自動緣靴（手套）耐壓試驗裝置產品別名

緣靴手套耐壓試驗裝置，防護工具緣試驗臺，緣靴手套耐壓測試儀，輔助緣工具試驗裝置，緣靴緣手套試驗裝置，帶電防護用具緣測試裝置，緣鞋緣手套試驗機，緣靴緣手套試驗機

南澳電氣NAJNY全自動緣靴（手套）耐壓試驗裝置產品特性

1、高壓電壓、泄漏電流、耐壓時間、狀態信息多種數據同屏液晶顯示，帶背光，讀數清晰、非常直觀。

2、中英文界面，有狀態提醒，引導式工作，操作簡單明了。

3、輕觸式面板按鍵操作，所有功能均可通過按鍵設定，提高了產品的安全性、可靠性。

4、全數字式調校，摒棄了陳舊的電位器調整方式，現場使用為方便。

5、采用硬、軟件抗干擾技術相結合，性能穩定，抗干擾性強。

南澳電氣NAJNY全自動緣靴（手套）耐壓試驗裝置產品參數

1. 輸入電壓：AC220V ; 50Hz

2. 輸出電壓：0-30kV

3. 容    量：3kVA

4. 測試數量：每次6只

5. 測量數據：可顯示打印每只被試品電壓值；泄漏電流值

6. 過流保護；過壓保護；自定義時間、電壓、泄漏電流值

7. 液晶顯示，中英文菜單操作，帶打印功能

8. 測量準確度：電壓±2%（±3個字）電流±2%（±3個字）

9. 重量：緣靴（手套）操作箱12Kg

         工頻耐壓試驗臺60kg



Product introduction

NAJNY insulated boots (gloves) withstand voltage testing device (automatic) are the special equipment for insulated boots (gloves) batch testing. They can test the safety equipment, such as insulating rod, insulated screwdriver, insulation pad. Nanao Electrical according to the insulated boots (gloves) testing requirements, and follows the advice of user, design and produce the product. The product is an effective solution for the former non-standard tests, improve work efficiency, and protect working safety, such an ideal insulated boots (gloves) special equipment.

Also called name

Insulated gloves & boots withstand voltage testing equipment, protective equipment insulation test bed, insulated boots & gloves withstand tester, assistive insulated tools testing device, insulated gloves & boots testing device, charged protective equipment insulation testers, insulated boots & gloves tester, insulated boots & gloves testing machine

The Characteristics of the products

1, High voltage, leakage current, withstand voltage time status information and other data will be displayed LCD screen at the same time, with back light, clear reading and is intuitive.

2, English interface, status notification, reminders, guided working, the operation is simple and straightforward.

3, Light touch panel keys operation, all functions can be set through the keys, to improve product safety and reliability.

4, Full digital calibration, eliminating the old potentiometer adjustment method, scene extremely easy to use.

5, Adopt hardware and software anti-jamming technology, with stable performance and strong anti-interference.

The parameters of the products

1. Input voltage: AC220V 50Hz

2. Output voltage :0-30kV

3. Capacity: 3kVA

4. Quantity of tests: Each 6 pieces per time

5. Measured data: Can display and print each tested voltage value and leakage current value

6. Over current protection; over voltage protection; custom time, voltage, leakage current value

7. Large LCD display,: full English menu operation with print

8. Measurement accuracy: Voltage ± 2% (± 3 word) Current ± 2% (± 3 words)

9. weight: insulated boots (gloves) operation desk 12Kg

  frequency voltage withstand test bed 60kg
