寶德氣動角座閥價格,BURKERT角座閥參數

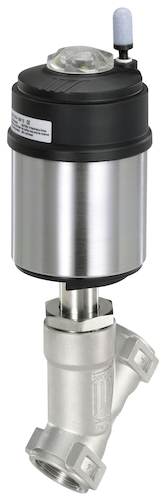

BURKERT氣動操作的二位二通斜座閥 ELEMENT
Type 2100 / 商品編號 188681
ELEMENT 角座閥
流量值高
使用壽命長
自動化裝置可輕松與 ELEMENT 系列實現一體化
經過流量?jī)?yōu)化的不銹鋼殼體，帶聯軸節連接、夾具連接或焊接連接
適用于 10 bar(g) 蒸汽
Type 2100
Actuator version ELEMENT
Main valve operating principle Angle seat valve
Valve piloting type Pneumatic
Nominal pressure min 0 bar
Nominal pressure max 20 bar
Control pressure min 4.8 bar
Control pressure max 10 bar
Control pressure vacuum No
Temperature environment min 0 °C
Temperature environment max 60 °C
Temperature medium min -10 °C
Temperature medium max 185 °C
Kv value (water) 11 m3/h
Pressure Class (PN) PN 25
Pressure class (LB) 150 LB
CIP capable Yes
SIP capable Yes
Control function A - normally closed (NC)
Fluidic port connection number 2
Valve function number of switching positions 2
寶德氣動角座閥價格,BURKERT角座閥參數
Valve function manual actuation No
Valve construction Valve complete
Seat seal material PTFE (Polytetrafluorethylene)
Orifice 20 mm
Body nominal size 20 mm
Body nominal size (IN) 3/4 inch
Valve body material Stainless steel
Valve body surface treatment internal unmachined
Valve body surface treatment external untreated
Port connection 1 type Weld end
Port connection 1 pipe standards 1 ISO 4200
Port connection 1 pipe standard 2 DIN 11866 serie B
Port connection 1 pipe standard 3 DIN EN ISO 1127
Port connection 1 size DN DN 20
Port connection 1 inner diameter (mm) 23.7 mm
Port connection 1 wall thickness (mm) 1.6 mm
Port connection 1 outer diameter (mm) 26.9 mm
Flow Below seat
Pipe material Stainless steel
Interface to actuator metric
Actuator size 70 mm
Actuator material PPS (Polyphenylene sulphide)
Control air connection material Plastic
Control air connection type Plug-in connection (hose)
Control air connection diameter (mm) 6 mm
Control air connection diameter (inch) 1/4 inch
Control air connection 1 pre-mounted not equipped
Control air connection 2 pre-mounted Silencer 902662
Control air connection position in line direction
Piston seal material FKM (Fluor rubber)
Control cone No
Swivel plate yes
Swivel plate material Stainless steel
Actuator increased chemical resistance No
Actuator with larger stroke No
Actuator with reduced stroke No
O-ring between cover and bush No
Position monitoring via magnetic piston No
Seal nipple body material Graphite
Packed seal enclosed Yes
Vacuum version No
Additional manual actuation included No
Manufacturer´s test certificate 3.1 included No
Weight 1,700000 kg
Weight 1,700000 kg
寶德氣動角座閥價格,BURKERT角座閥參數
140679S 621200-A13,0AAVAGM84-0-BCY/UC-04 *
140681D 621200-A13,0AAVAGM85-0-024/DC-AS
140682E 621200-A13,0AAVAGM85-0-BBH/UC-04 *
140683F 621200-A13,0AAVAGM85-0-BCY/UC-04 *
140685H 621200-A20,0AAVAGM85-0-024/DC-AS
140686A 621200-A20,0AAVAGM85-0-BBH/UC-04 *
140687B 621200-A20,0AAVAGM85-0-BCY/UC-04 *
140689M 621200-A20,0AAVAGM86-0-024/DC-AS
140690J 621200-A20,0AAVAGM86-0-BBH/UC-04 *
140691F 621200-A20,0AAVAGM86-0-BCY/UC-04 *
140693H 621200-A10,0BBVAGM83-0-024/DC-AS *
140694A 621200-A10,0BBVAGM83-0-BBH/UC-04 *
140696C 621200-A10,0BBVAGM84-0-024/DC-AS *
140697D 621200-A10,0BBVAGM84-0-BBH/UC-04 *
140698N 621200-A10,0BBVAGM84-0-BCY/UC-04 *
寶德氣動角座閥價格,BURKERT角座閥參數
:蕭小姐
:0
：
:0（發時請備注蕭小姐收）
Q Q:1853078598
郵箱:1853078598@QQ.COM
地址:東莞市南城區莞太路12號
140699P 621200-A13,0BBVAGM84-0-024/DC-AS *
140700U 621200-A13,0BBVAGM84-0-BBH/UC-04 *
140701R 621200-A13,0BBVAGM84-0-BCY/UC-04 *
140702J 621200-A13,0BBVAGM85-0-024/DC-AS *
140703K 621200-A13,0BBVAGM85-0-BBH/UC-04 *
140704L 621200-A13,0BBVAGM85-0-BCY/UC-04 *
140705M 621200-A20,0BBVAGM85-0-024/DC-AS *
140706N 621200-A20,0BBVAGM85-0-BBH/UC-04 *
140707P 621200-A20,0BBVAGM85-0-BCY/UC-04 *
140708Y 621200-A20,0BBVAGM86-0-024/DC-AS *
140709Z 621200-A20,0BBVAGM86-0-BBH/UC-04 *
140710M 621200-A20,0BBVAGM86-0-BCY/UC-04 *
140711A 621200-B10,0AAVAGM83-0-024/DC-AS
140712B 621200-B10,0AAVAGM83-0-BBH/UC-04 *
140713C 621200-B10,0AAVAGM83-0-BCY/UC-04 *
140715E 621200-B10,0AAVAGM84-0-024/DC-AS
140716F 621200-B10,0AAVAGM84-0-BBH/UC-04 *
140717G 621200-B10,0AAVAGM84-0-BCY/UC-04 *
140719J 621200-B13,0AAVAGM84-0-024/DC-AS
140720P 621200-B13,0AAVAGM84-0-BBH/UC-04 *
